Specifications:	STC-ALTS10-12P	STC-ALTS30-12P
วัตต์สูงสุดPeak Power	10 Watts	30 Watts
ระบบโวลท์Nominal Voltage	12 V	12 V
Voltage at Max Power (Vmp)	18.11 V	18.16 V
Current at Max Power (Imp)	.55 A	1.65 A
แรงดันเปิดวงจรOpen Circuit Voltage (Voc)	21.73 V	21.79 V
Short Circuit Current (Isc)	.59 A	1.77 A
Max System Voltage	600 Vdc
ประสิทธิภาพของโมดูลModule Efficiency	10%	12.8%
ขนาดDimensions	14.2" x 11" x 1" (360 x 280 x 25 mm)	26.4" x 13.8" x 1" (670 x 350 x 25 mm)
น้ำหนักWeight	3.3 lbs (1.5kg)	6.17 lbs (2.8kg)
คอนเน็กเตอร์Connectors/Cables	IP65 Junction Box (+ on right; - on left)
จำนวนของเซลล์Number of Cells	36 Polycrystalline cells
Operating Temperature Range	-40C to + 85C

Specifications:	STC-ALTS60-12P	STC-ALTS100-12P
Peak Power	60 Watts	100 Watts
Nominal Voltage	12 V	12 V
Voltage at Max Power (Vmp)	17.9 V	17.7 V
Current at Max Power (Imp)	3.35 A	5.65 A
Open Circuit Voltage (Voc)	20.87 V	21.61 V
Short Circuit Current (Isc)	3.58 A	5.74 A
Max System Voltage	600 Vdc
Module Efficiency	11.5%	14.63%
Dimensions	26.4" x 25.6" x 1" (670 x 650 x 25 mm)	40.2" x 26.4" x 1.4" (1020 x 670 x 35 mm)
Weight	11 lbs (5kg)	16.5 lbs (7.5kg)
Connectors/Cables	MC4 Compatible Connector Cables	MC4 Compatible Connector Cables
Number of Cells	36 Polycrystalline cells
Operating Temperature Range	-40°C to + 85°C

Specifications:	STC-ALTS150-12P	STC-ALTS165-12M
Peak Power	150 Watts	165 Watts
Nominal Voltage	12 V	12 V
Voltage at Max Power (Vmp)	18.01 V	18.72 V
Current at Max Power (Imp)	8.33 A	8.82 A
Open Circuit Voltage (Voc)	22.32 V	23.12 V
Short Circuit Current (Isc)	8.86 A	9.49 A
Max System Voltage	600 Vdc
Module Efficiency	15.6%	16.64%
Dimensions	58.3" x 26.4" x 1.38" (1480 x 670 x 35 mm)	58.3" x 26.4" x 1.38" (1480 x 670 x 35 mm)
Weight	25.3 lbs (11.5kg)	25.3 lbs (11.5kg)
Connectors/Cables	MC4 Compatible Connector Cables
Number of Cells	36 Polycrystalline cells	36 Monocrystalline cells
Operating Temperature Range	-40°C to + 85°C

Specifications:	STC-ALTS100-24P	STC-ALTS200-24P
Peak Power	100 Watts	200 Watts
Nominal Voltage	24 V	24 V
Voltage at Max Power (Vmp)	36.23 V	36.7 V
Current at Max Power (Imp)	2.76 A	5.45 A
Open Circuit Voltage (Voc)	44.8 V	44.56 V
Short Circuit Current (Isc)	3.04 A	5.99 A
Max System Voltage	600 Vdc	1000 Vdc
Module Efficiency	14.63%	15.72%
Dimensions	40.2" x 26.4" x 1.4" (1020 x 670x 35mm)	52" x 39" x 1.6" (1320 x 990 x 40 mm)
Weight	16.5 lbs (7.5kg)	34.1 lbs (15.5kg)
Connectors/Cables	MC4 Compatible Connector Cables
Number of Cells	72 Polycrystalline cells
Operating Temperature Range	-40°C to + 85°C

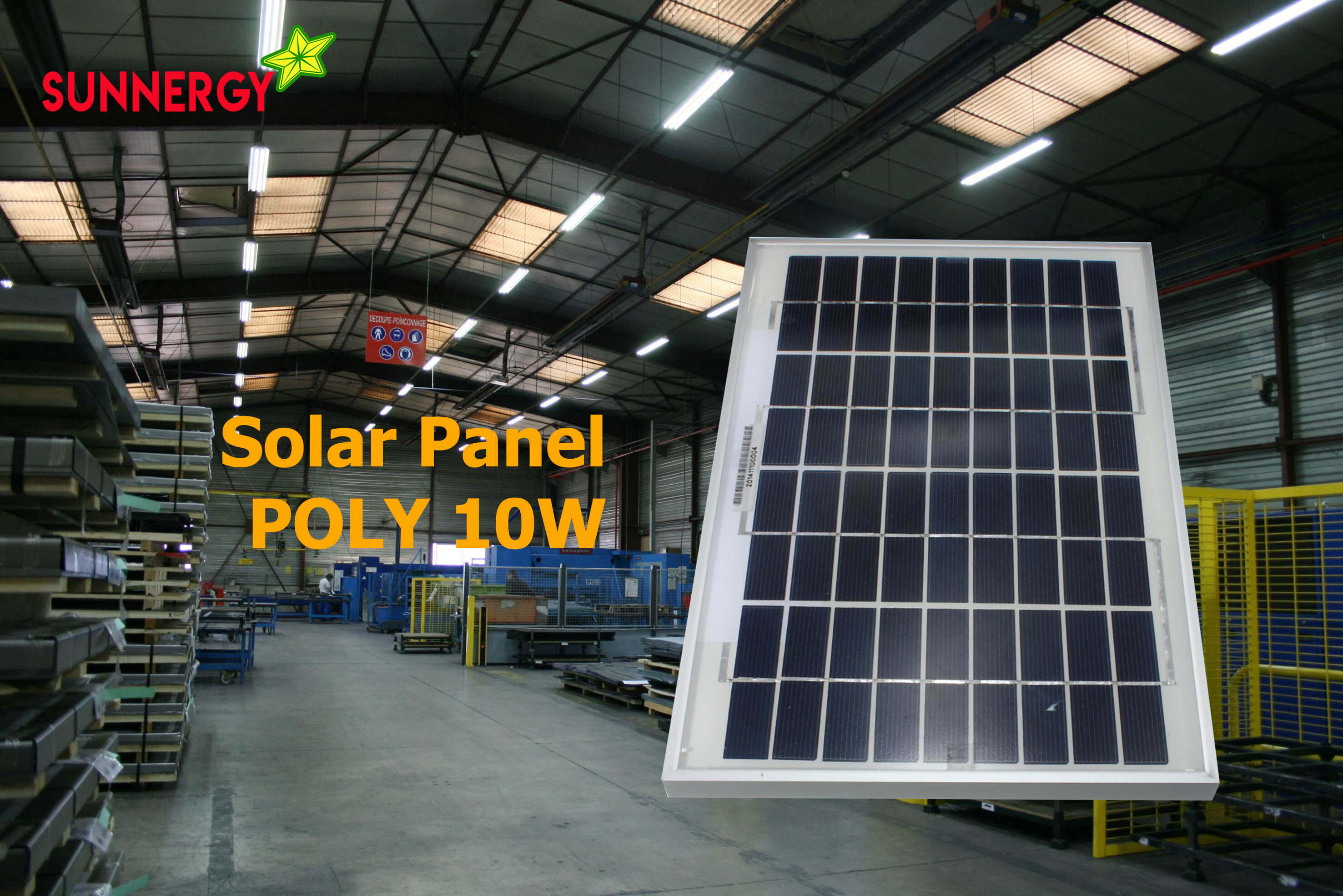

แผงโซล่าเซลล์โพลี 10W

รายละเอียดสินค้า
