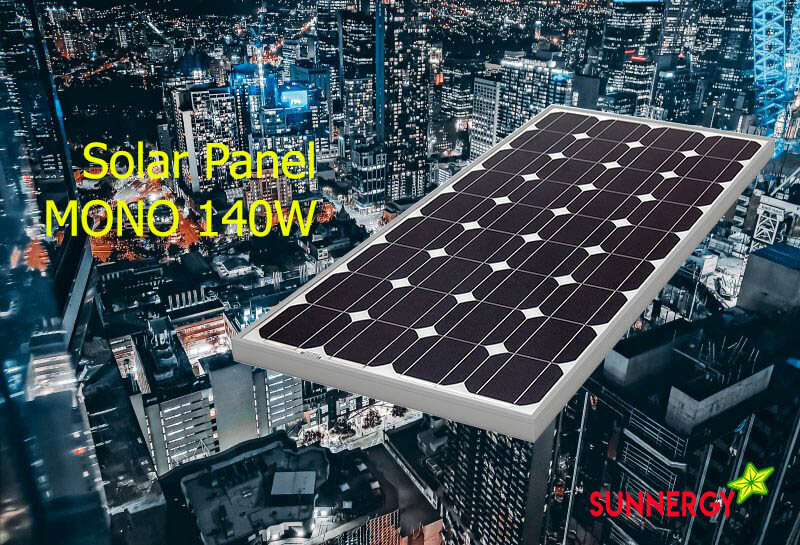

แผงโซล่าเซลล์โมโน 140 วัตต์

solar cell panel

ITEM NO

140W/18V

MONO or POLY

MONO

Maximum power (Wp)

140

Maximum power voltage (V)

18

Maximum power current (A)

5.56

Open circuit voltage (V)

  21

Short circuit current (A)

6.04

Number of cells (Pcs)

                 36

Size of module (mm)

1480*673*35mm( 156x156mm cell)

Brand Name of Solar Cells

HT

               1000

Temperature coefficients of Isc (%)

0.065+/-0.015%/°C

Temperature coefficients of Voc (%)

-(2.23+/-0.1)mv/ °C

Temperature coefficients of Pm (%)

-(0.5+-0.05)/ °C

Temperature coefficients of Im (%)

+0.1/ °C

Temperature coefficients of Vm (%)

-0.38/ °C

Temperature Range

-40°C~+85°C

Tolerance Wattage (e.g. +/-3%)

              +/-3%

Surface Maximum Load Capacity

          60m/s(200kg/sq.m)

Allowable Hail Load

steel ball fall down from 1m height

Weight per piece (kg)

               7.5

Length of Cables (mm)

               900

Cell Efficiency (%)

              more than 15.2%

Module Efficiency (%)

             more than 14%

Output tolerance (%)

               +/-3%

Frame (Material, Corners, etc.

               Aluminum

Standard Test Conditions

AM1.5  100mW/cm2  25’C

Warranty

1 years product warranty and 2 years 80% of power
